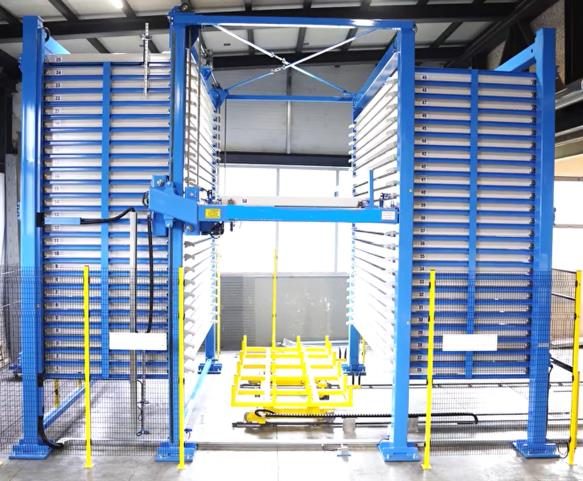

Cantilever vertical storage for sheet metal and plate
A modular cantilever rack with custom pallets stores sheets and plates up to 12 m long and delivers them to your production machines on demand. No more stacking damage, and far less floor space.
Specifications
| Material | Steel and aluminium sheets and plates |
|---|---|
| Material length | 3–12 m |
| Material width | 1–2 m |
| Load per storage position | Up to 6 t |
| Number of positions | 50–9,999 |
| Retrieval method | Telescopic fork or chain push-pull |
| Stacker crane travel speed | 120 m/min |
| Stacker crane acceleration | 0.5 m/s² |
| Retrieval cycle | About 90 s (1,000-position system) |
| Rack | Modular cantilever rack with custom pallets |
What makes it different
- More levels in the same height. A lower level pitch than conventional AS/RS fits more storage into your building.
- Sheets stay flat and clean. Each load sits on its own custom pallet instead of in a stack.
- Storage next to production. Fewer handling moves between the store and your cutting and forming machines.
- Quick to install. A modular rack that goes up fast and grows with you.
Questions buyers ask
What is the difference from a standard sheet metal tower?
Kinkalteck's cantilever system uses a lower level pitch than conventional AS/RS, so more storage levels fit into the same building height, and it handles sheets and plates up to 12 m long.
Which retrieval method should I choose?
Both telescopic fork and chain push-pull retrieval are available. We recommend one after reviewing your sheet sizes, weights and throughput.
Get a layout for your sheet store
Send your sheet sizes, weights and quantities. We'll send a layout and a budget price.
